39-01-2201

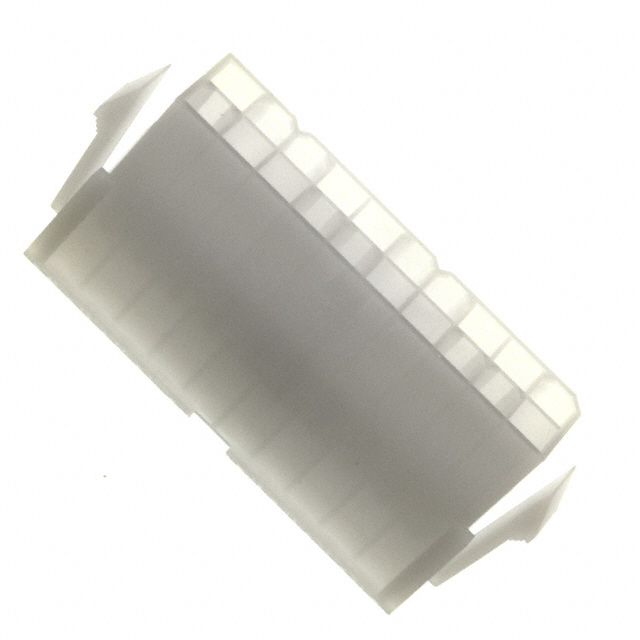

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39-01-2201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39-01-2201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39-01-2201 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 20POS PANEL MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.372 | $0.328 | $0.309 | $0.296 | $0.283 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.257 | $0.232 | $0.206 | $0.187 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39-01-2201 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 20POS PANEL MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101482 pcs | Data sheet | 39-01-22015556-001 Prod Spec |
| Category | Connectors, Interconnects | Series | Mini-Fit Jr 5559 |
| Row Spacing | 0.165" (4.20mm) | Pitch | 0.165" (4.20mm) |
| Packaging | Bulk | Other Names | 0039-01-2201 0039-01-2201-E 0039012201 0039012201-E 39-01-2201-E 39-01-2201-ND 39012201 39012201-E 5559-20P Q723256 WM1028 |
| Number of Rows | 2 | Number of Positions | 20 |
| Note | Contacts Not Included | Mounting Type | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 20 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
| Contact Type | Male Pin | Contact Termination | Crimp |
| Connector Type | Plug | Color | Natural |
