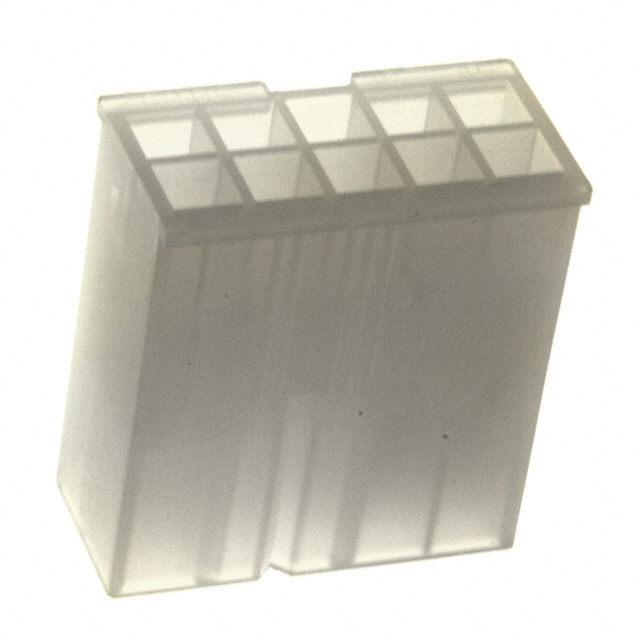

39-01-3103
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39-01-3103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39-01-3103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39-01-3103 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 10POS VERT DUAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.193 | $0.181 | $0.163 | $0.145 | $0.138 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.126 | $0.12 | $0.099 | $0.09 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39-01-3103 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 10POS VERT DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223394 pcs | Data sheet | 5556-001 Prod Spec39-01-3103 |
| Category | Connectors, Interconnects | Series | Mini-Fit Jr 5559 |
| Row Spacing | 0.165" (4.20mm) | Pitch | 0.165" (4.20mm) |
| Packaging | Bulk | Other Names | 0039-01-3103 0039-01-3103-P 0039013103 0039013103-P 39-01-3103-P 39013103 39013103-P 5559-10P1 WM1020 |
| Number of Rows | 2 | Number of Positions | 10 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 10 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
| Contact Type | Male Pin | Contact Termination | Crimp |
| Connector Type | Plug | Color | Natural |
