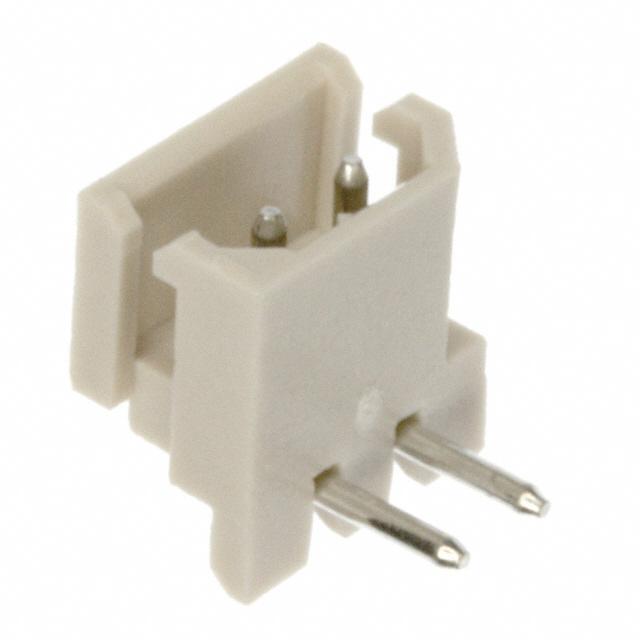

22-05-7025
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-05-7025 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-05-7025 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-05-7025 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2POS 2.5MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.213 | $0.198 | $0.152 | $0.132 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.109 | $0.096 | $0.089 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-05-7025 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS 2.5MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 254493 pcs | Data sheet | 22-05-7025 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SPOX 5268 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0022-05-7025 0022-05-7025-E 0022057025 0022057025-E 22-05-7025-E 22-05-7025-ND 22057025 22057025-E 5268-02A WM18900 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) | Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
