22-05-1152
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-05-1152 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-05-1152 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-05-1152 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

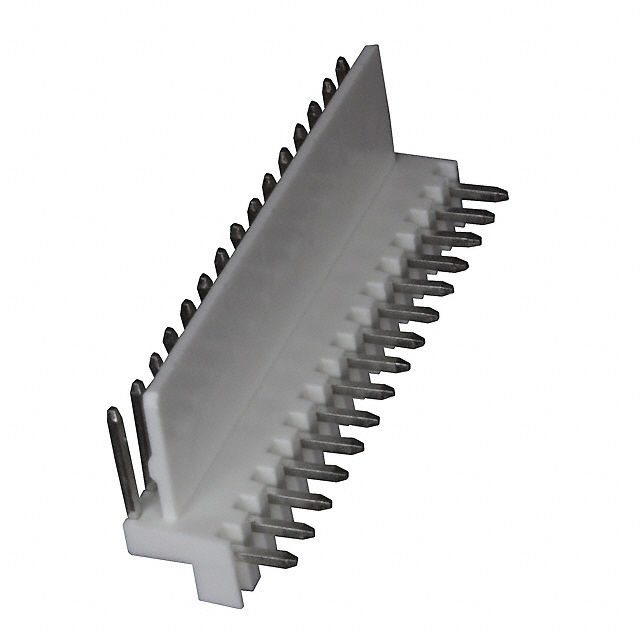

| Description | CONN HEADER 15POS 2.5MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.091 | $1.048 | $0.873 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.742 | $0.633 | $0.567 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-05-1152 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 15POS 2.5MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60607 pcs | Data sheet | 22-05-1152 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | KK 5046 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0022-05-1152 0022-05-1152-E 0022051152 0022051152-E 22-05-1152-E 22051152 22051152-E 5046-15A WM18812 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.248" (6.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 15 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
