22-05-7135
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-05-7135 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-05-7135 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-05-7135 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

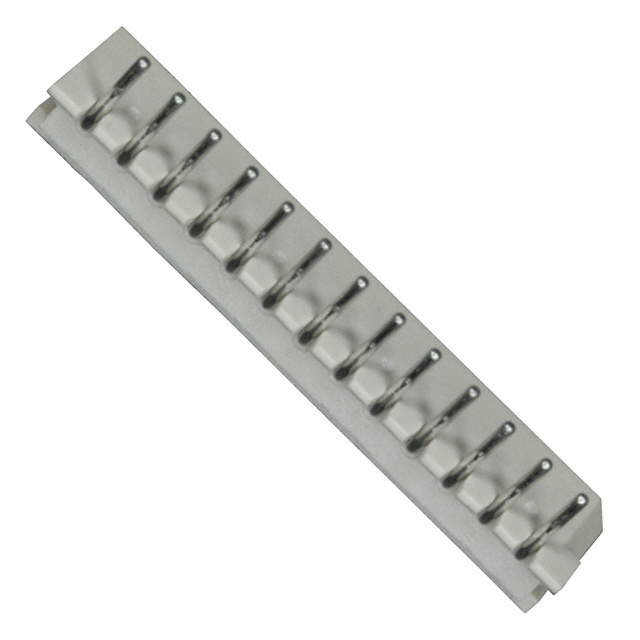

| Description | CONN HEADER 13POS 2.5MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-05-7135 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 13POS 2.5MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5068 pcs | Data sheet | 22-05-7135 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SPOX 5268 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0022057135 22-05-7135-ND 5268-13A WM18911 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.193" (4.90mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 13 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.138" (3.50mm) | Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
