19198-0056

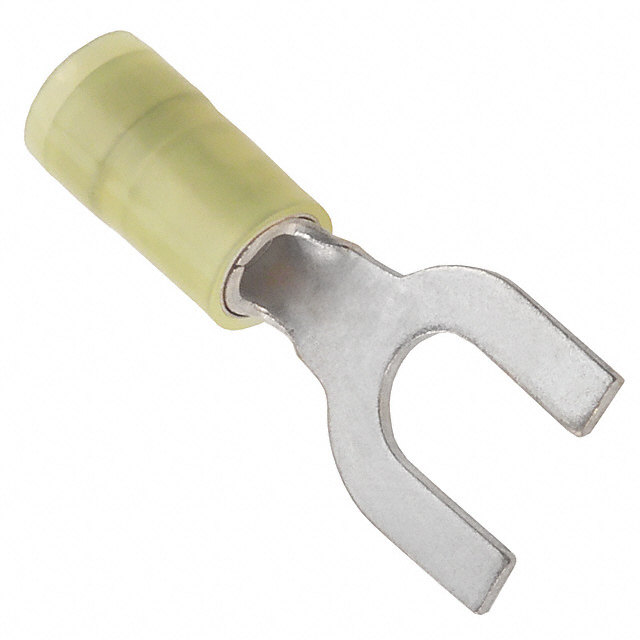

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 19198-0056 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 19198-0056 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 19198-0056 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 10-12AWG #1/4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 19198-0056 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #1/4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4647 pcs | Data sheet | 19198-0056 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.533" (13.54mm) | Tongue Inside Opening | 0.265" (6.73mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 1/4 Stud | Series | Avikrimp |
| Packaging | Bulk | Other Names | 0191980056 191-98-0056-C 19198-0056-C C-868-14 WM18373 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Length - Termination | 0.560" (14.22mm) |
| Length - Ring Center to Termination | 0.393" (9.98mm) | Length - Overall | 1.271" (32.28mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.225" (5.72mm) |
| Insulation | Insulated | Features | - |
| Detailed Description | Yellow 1/4 Stud Spade Terminal Connector Crimp 10-12 AWG | Contact Material | Copper |
| Contact Finish | Electro-Tin | Color | Yellow |
