0908160012

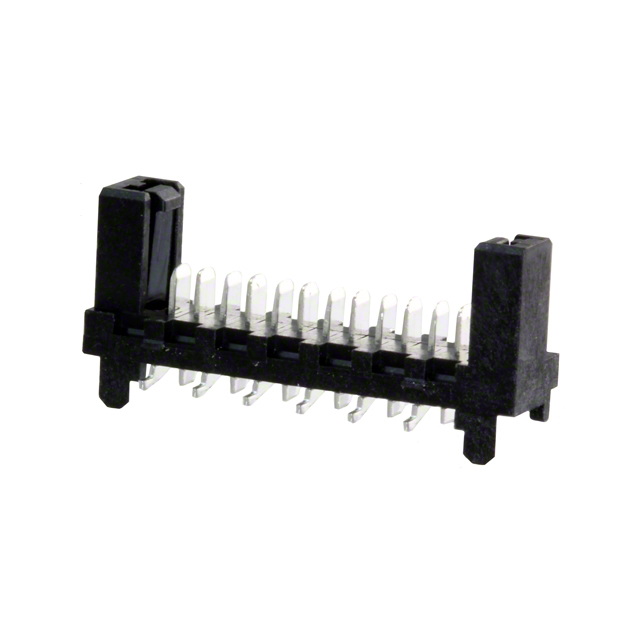

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0908160012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0908160012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0908160012 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 12CKT PICOFLEX SMT LATCHED HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.505 | $0.457 | $0.429 | $0.41 | $0.392 | |
| 250 pcs | 500 pcs | 2496 pcs | 4992 pcs | ||
| $0.354 | $0.326 | $0.261 | $0.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0908160012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 12CKT PICOFLEX SMT LATCHED HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94742 pcs | Data sheet | Picoflex® Brochure99020-0011 Prod Spec908160012 |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex 90816 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 090816-0012 0908160012-ND 90816-0012 908160012 WM14841 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Insulation Height | 0.333" (8.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 12 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.083" (2.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
