0908143918

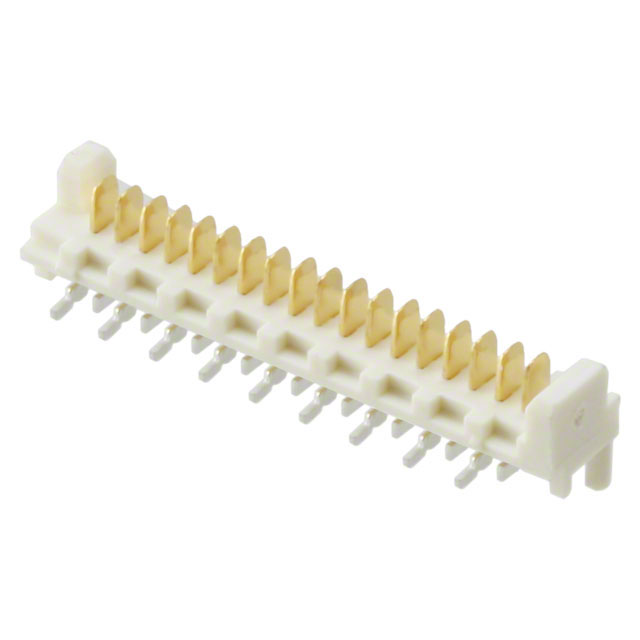

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0908143918 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0908143918 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0908143918 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | PFLEX SMT HDR W PEGS AU 18 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 9000 pcs | ||||
|---|---|---|---|---|---|
| $0.235 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0908143918 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | PFLEX SMT HDR W PEGS AU 18 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85102 pcs | Data sheet | 90814, 93405-x0,3 Pkg Spec090814yyyy DrawingPicoflex® Brochure99020-0011 Prod Spec90814-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90814 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 0908-14-3918 090814-3918 908-14-3918 90814-3918 908143918 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.161" (4.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 18 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Cartridge Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 24.0µin (0.61µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Palladium-Nickel |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
