0908160020

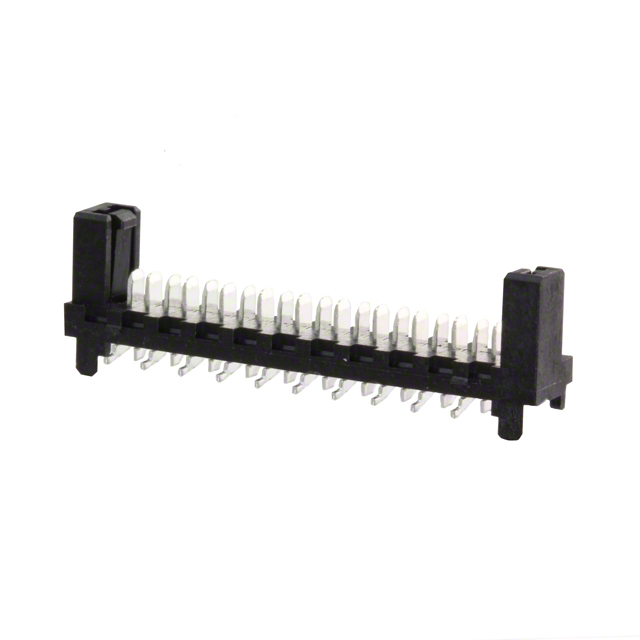

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0908160020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0908160020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0908160020 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 20CKT PICOFLEX SMT LATCHED HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.646 | $0.587 | $0.551 | $0.527 | $0.503 | |
| 250 pcs | 500 pcs | 1632 pcs | 3264 pcs | ||
| $0.455 | $0.419 | $0.347 | $0.335 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0908160020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 20CKT PICOFLEX SMT LATCHED HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71942 pcs | Data sheet | 908160020Picoflex® Brochure99020-0011 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex 90816 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 090816-0020 0908160020-ND 90816-0020 908160020 WM14842 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Insulation Height | 0.333" (8.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 20 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.083" (2.10mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
