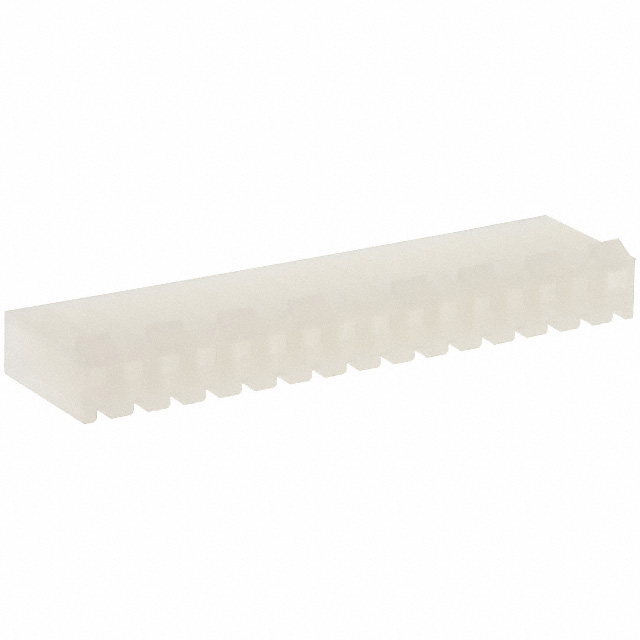

09-50-3161
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-50-3161 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-50-3161 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-50-3161 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 16POS .156 W/RAMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.284 | $0.251 | $0.236 | $0.226 | $0.217 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.197 | $0.177 | $0.158 | $0.143 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-50-3161 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 16POS .156 W/RAMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158463 pcs | Data sheet | 09-50-3161 |
| Category | Connectors, Interconnects | Series | KK 2139 |
| Row Spacing | - | Pitch | 0.156" (3.96mm) |
| Packaging | Bulk | Other Names | 0009-50-3161 0009-50-3161-P 0009503161 0009503161-P 09-50-3161-P 09503161 09503161-P 2139-16A 9503161 WM17400 |
| Number of Rows | 1 | Number of Positions | 16 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 16 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Contact Type | Non-Gendered | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
