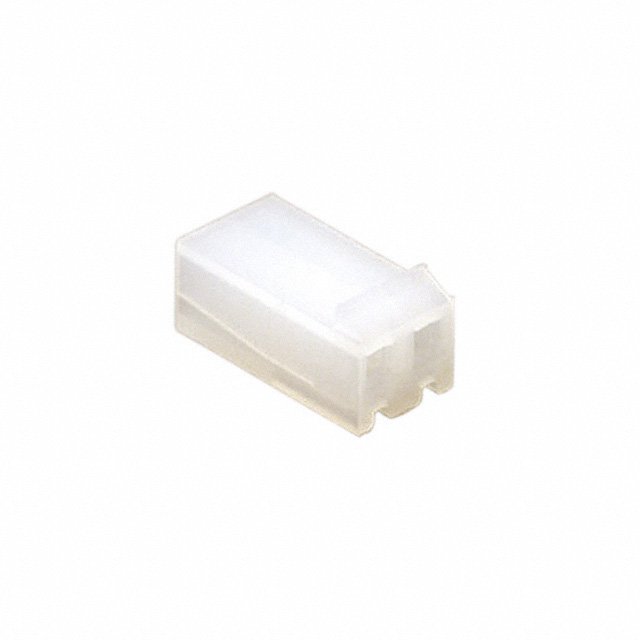

09-50-3021
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-50-3021 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-50-3021 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-50-3021 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | CONN HOUSING 2POS .156 W/RAMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.051 | $0.048 | $0.036 | $0.031 | $0.03 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.026 | $0.025 | $0.021 | $0.019 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-50-3021 | Manufacturer | Molex, LLC |
|---|---|---|---|
| Description | CONN HOUSING 2POS .156 W/RAMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1283763 pcs | Data sheet | 09-50-3021 |
| Category | Connectors, Interconnects | Stacking Direction | Non-Gendered |
| Series | KK® 2139 | RoHS Status | Bulk |
| Pitch | Crimp | Other Names | 0009-50-3021 0009-50-3021-P 0009503021 0009503021-P 09-50-3021-P 09503021 09503021-P 2139-2A 9503021 WM2100 |
| Number of Rows | 1 | Number of Positions | 2 |
| Number of Conductors | 0.156" (3.96mm) | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Manufacturer Part Number | 09-50-3021 |
| Features | - | Expanded Description | 2 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Description | CONN HOUSING 2POS .156 W/RAMP | Current - Max/Contact | Locking Ramp |
| Connector Type | Receptacle | Color | Natural |
| Adapter Type | - |
