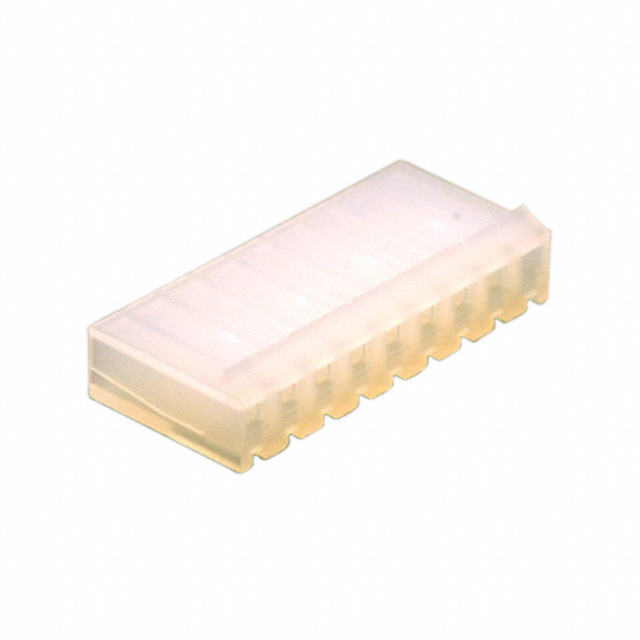

09-50-3091
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09-50-3091 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09-50-3091 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09-50-3091 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HOUSING 9POS .156 W/RAMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.195 | $0.184 | $0.166 | $0.147 | $0.141 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.129 | $0.123 | $0.101 | $0.092 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09-50-3091 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HOUSING 9POS .156 W/RAMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 253187 pcs | Data sheet | 09-50-3091 |
| Category | Connectors, Interconnects | Series | KK 2139 |
| Row Spacing | - | Pitch | 0.156" (3.96mm) |
| Packaging | Bulk | Other Names | 0009-50-3091 0009-50-3091-P 0009503091 0009503091-P 09-50-3091-P 09503091 09503091-P 2139-9A 9503091 WM2107 |
| Number of Rows | 1 | Number of Positions | 9 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 9 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm) |
| Contact Type | Non-Gendered | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Natural |
