0836149014

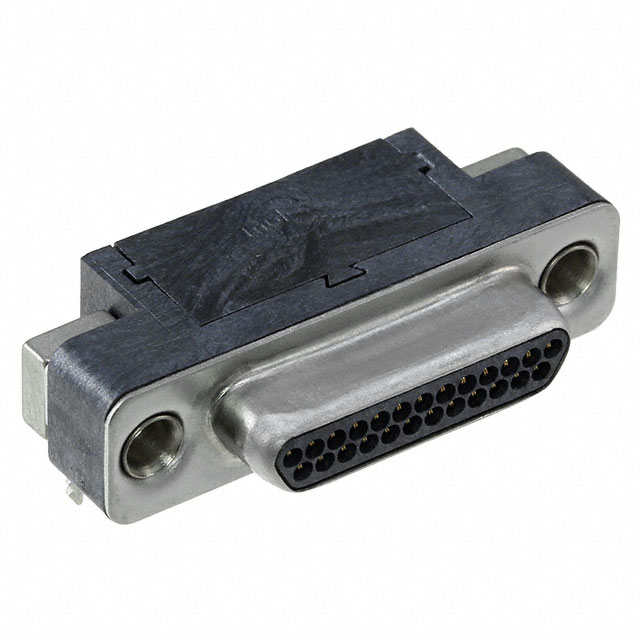

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0836149014 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0836149014 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0836149014 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MICRO-D PLUG 25POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.469 | $6.007 | $5.391 | $5.237 | ||
| 102 pcs | 306 pcs | 510 pcs | |||
| $4.621 | $4.313 | $4.22 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0836149014 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 25POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7635 pcs | Data sheet | 0836149014 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | Shell Material, Finish | Steel, Nickel Plated |
| Series | Commercial Micro-D Series 83614 | Packaging | Tube |
| Other Names | 0836149014-ND 83614-9014 836149014 WM14799 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Flange Feature | Housing/Shell (2-56) |
| Features | Board Lock, Shielded | Detailed Description | 25 Position D-Type, Micro-D Plug, Male Pins Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Type, Micro-D |
| Color | - | Backset Spacing | - |
