0836129022

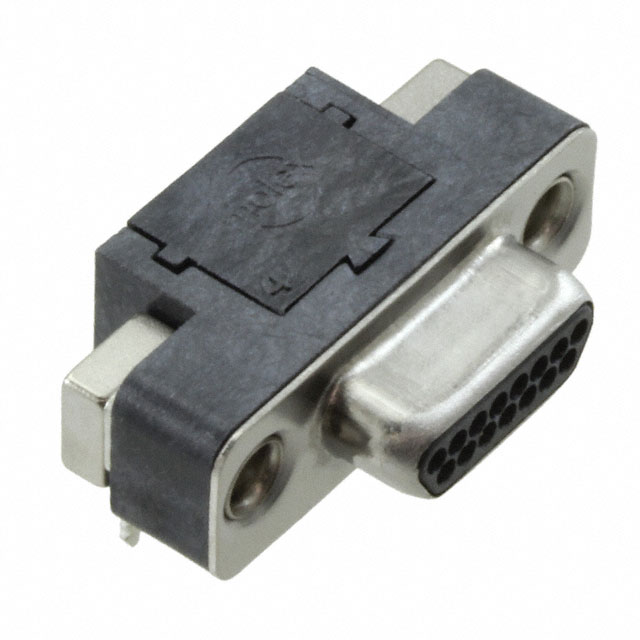

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0836129022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0836129022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0836129022 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | CONN MICRO-D PLUG 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.309 | $3.917 | $3.525 | $3.329 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.035 | $2.839 | $2.605 | $2.546 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0836129022 | Manufacturer | Molex, LLC |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12509 pcs | Data sheet | 83421-001-001 Prod Spec0836129022 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Copper Alloy |
| Voltage | - | Type Attributes | - |
| Termination | Solder | Stacking Direction | Signal |
| Shell Size - Insert (Convert From) | Steel, Nickel Plated | Series | Commercial Micro-D Series 83612 |
| RoHS Status | Tube | Pitch - Connector | - |
| Other Names | 0836129022-ND 83612-9022 836129022 WM14797 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Manufacturer Part Number | 0836129022 | Length - Threaded Portion Below Head | - |
| Features | Board Lock, Shielded | Expanded Description | 15 Position D-Type, Micro-D Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder |
| Description | CONN MICRO-D PLUG 15POS R/A SLDR | Current Rating (Per Contact) | Housing/Shell (2-56) |
| Current Rating | 1A | Contact Form | 0.050 Pitch x 0.050 Row to Row |
| Contact Finish Thickness | Gold | Connector Usage | D-Type, Micro-D |
| Connector Type | Plug, Male Pins | Color | - |
| Cable Opening | Liquid Crystal Polymer (LCP) | Cable Diameter | 15µin (0.38µm) |
| Backset Spacing | - |
