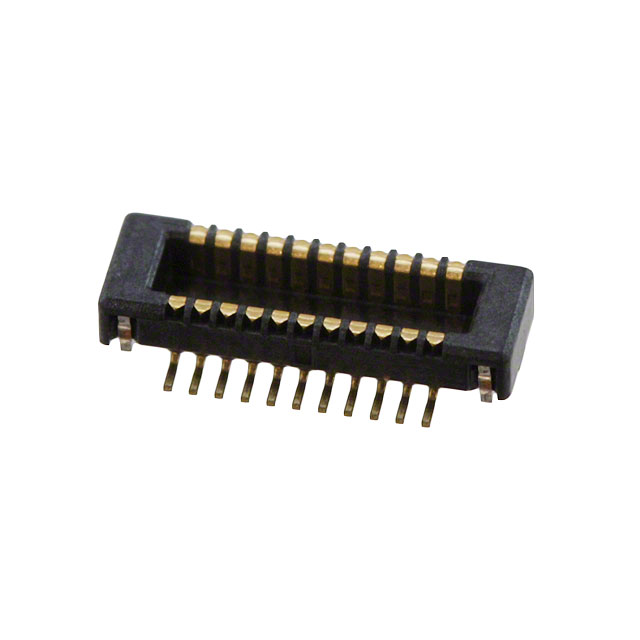

0559092274
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559092274 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559092274 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559092274 |
|---|---|
| Manufacturer | Molex Connector Corporation |
| Description | CONN PLUG BTB 22POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 625 pcs | ||||
|---|---|---|---|---|---|
| $0.608 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559092274 | Manufacturer | Molex Connector Corporation |
|---|---|---|---|
| Description | CONN PLUG BTB 22POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57163 pcs | Data sheet | 51338,55909 Series Spec55909 Series Drawing |
| Category | Connectors, Interconnects | Series | SlimStack™ 55909 |
| RoHS Status | Tape & Reel (TR) | Other Names | 055909-2274 55909-2274 55909-2274-TR625 559092274 WM8772TR |
| Number of Rows | 2 | Number of Positions | 22 |
| Number of Conductors | 0.016" (0.40mm) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Manufacturer Part Number | 0559092274 | Length - Post (Mating) | 1.5mm |
| Height Above Board | 0.045" (1.14mm) | Features | Solder Retention |
| Expanded Description | 22 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Description | CONN PLUG BTB 22POS DL VERT SMD |
| Contact Finish Thickness | Gold | Connector Type | Plug, Outer Shroud Contacts |
| Cable Diameter | 8µin (0.20µm) |
