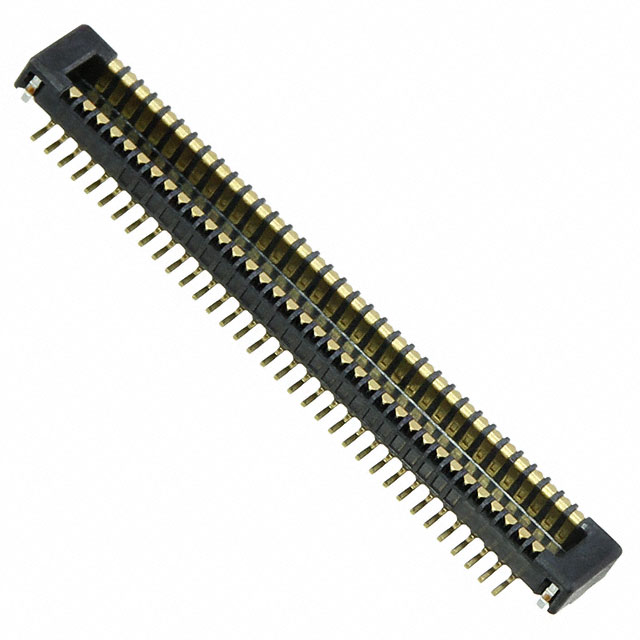

0559090774
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559090774 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559090774 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559090774 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG BTB 70POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $1.025 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559090774 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG BTB 70POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32882 pcs | Data sheet | 51338,55909 Series Spec55909 Series Drawing |
| Category | Connectors, Interconnects | Series | SlimStack 55909 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 055909-0774 55909-0774 55909-0774-TR625 559090774 WM8777TR |
Number of Rows | 2 |
| Number of Positions | 70 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1.5mm |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.045" (1.14mm) | Features | Solder Retention |
| Detailed Description | 70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
