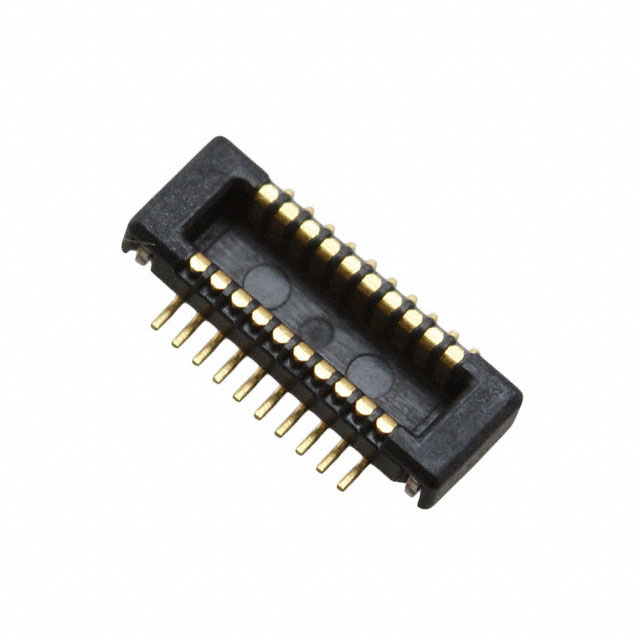

0559090274
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0559090274 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0559090274 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0559090274 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG BTB 20POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | ||
|---|---|---|---|---|---|
| $0.286 | $0.272 | $0.265 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0559090274 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG BTB 20POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73047 pcs | Data sheet | 0559090274 |
| Category | Connectors, Interconnects | Series | SlimStack 55909 |
| Pitch | 0.016" (0.40mm) | Packaging | Tape & Reel (TR) |
| Other Names | 055909-0274 55909-0274 559090274 WM3450TR |
Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1.5mm |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.045" (1.14mm) | Features | Solder Retention |
| Detailed Description | 20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
