0546841204

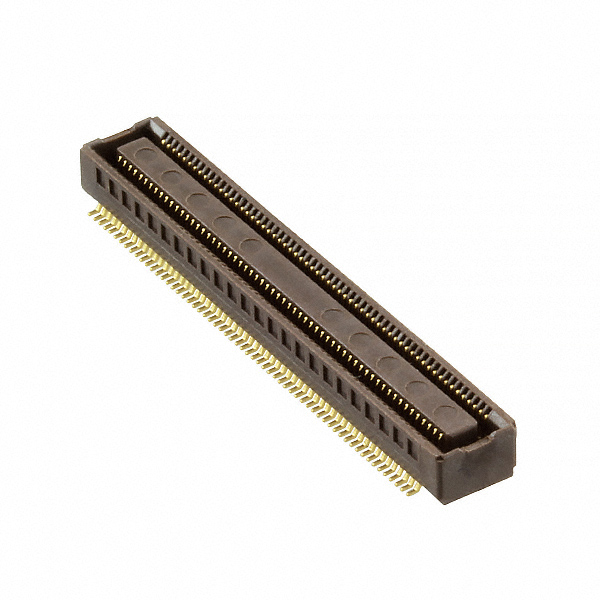

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0546841204 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0546841204 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0546841204 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT BTB 120POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.655 | $2.544 | $2.323 | $2.213 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.102 | $1.881 | $1.77 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0546841204 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT BTB 120POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18097 pcs | Data sheet | 54684 Series Drawing54684,501017 Series Spec |
| Category | Connectors, Interconnects | Series | SlimStack 54684 |
| Pitch | 0.016" (0.40mm) | Packaging | Original-Reel® |
| Other Names | WM8791DKR | Number of Rows | 2 |
| Number of Positions | 120 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 3.5mm, 4mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.102" (2.60mm) | Features | - |
| Detailed Description | 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Center Strip Contacts |
