0547220228

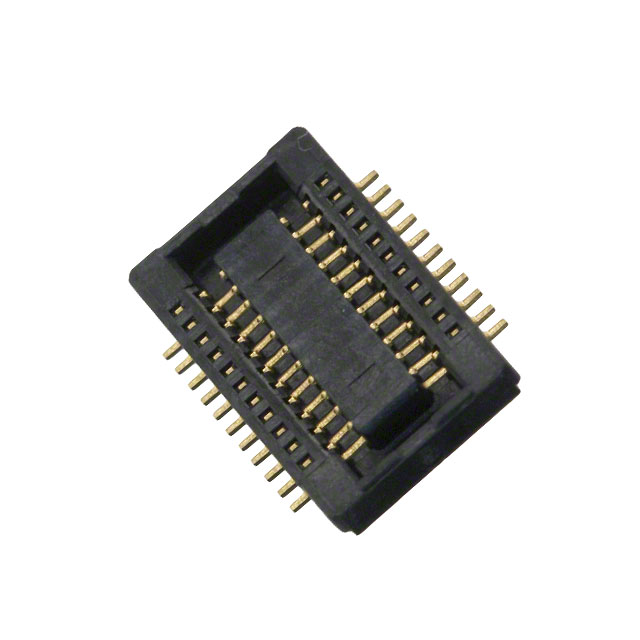

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0547220228 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0547220228 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0547220228 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 22POS 1.5MM SMD .5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0547220228 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 22POS 1.5MM SMD .5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5370 pcs | Data sheet | 54722, 55560 Series Prod Spec54722-0228 |
| Category | Connectors, Interconnects | Series | SlimStack 54722 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 054722-0228-C 0547220228-C 54722-0228-C 547220228-C WM23967 WM23967-ND WM6537CT |
Number of Rows | 2 |
| Number of Positions | 22 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 1.5mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.045" (1.14mm) |
| Features | - | Detailed Description | 22 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Center Strip Contacts |
