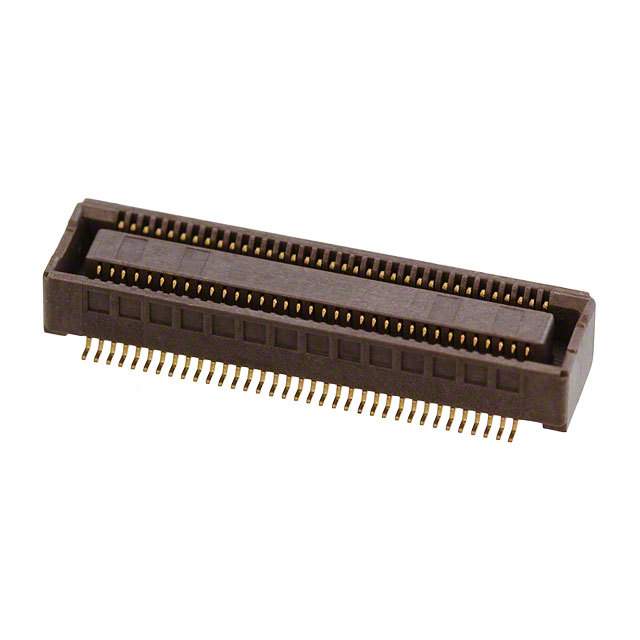

0546840704
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0546840704 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0546840704 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0546840704 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 70POS VERT .4MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0546840704 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 70POS VERT .4MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4155 pcs | Data sheet | 0546840704 Drawing |
| Category | Connectors, Interconnects | Series | SlimStack 54684 |
| Pitch | 0.016" (0.40mm) | Packaging | Cut Tape (CT) |
| Other Names | WM6792CT | Number of Rows | 2 |
| Number of Positions | 70 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 3.5mm, 4mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.102" (2.60mm) |
| Features | - | Detailed Description | 70 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Center Strip Contacts |
