0536470274

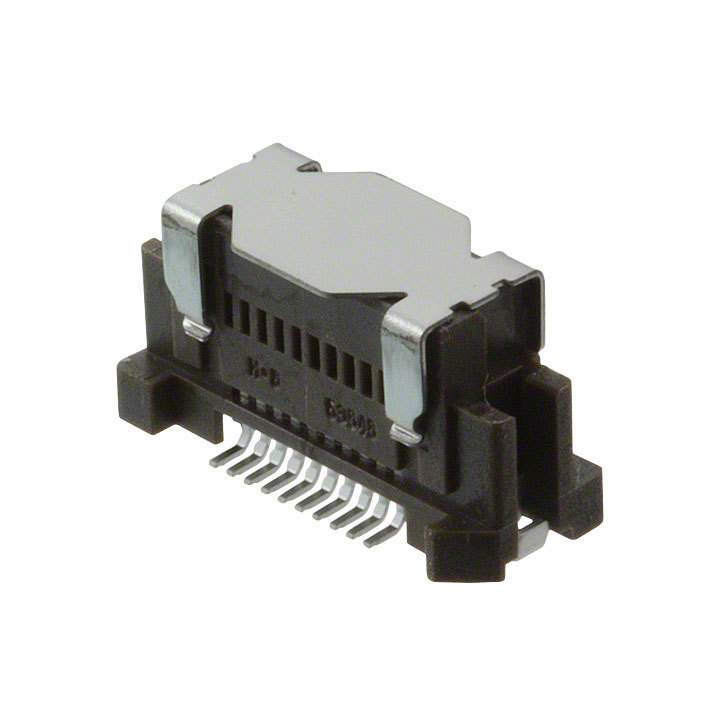

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0536470274 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0536470274 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0536470274 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 20POS VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 840 pcs | 1680 pcs | 2520 pcs | ||
|---|---|---|---|---|---|
| $0.802 | $0.725 | $0.699 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0536470274 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 20POS VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55925 pcs | Data sheet | 53647 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 53647 |
| Pitch | 0.025" (0.64mm) | Packaging | Tape & Reel (TR) |
| Other Names | 053647-0274 53647-0274 536470274 WM7111TR |
Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 8mm, 14mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.275" (6.99mm) | Features | Board Guide, Solder Retention |
| Detailed Description | 20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
