0536270774

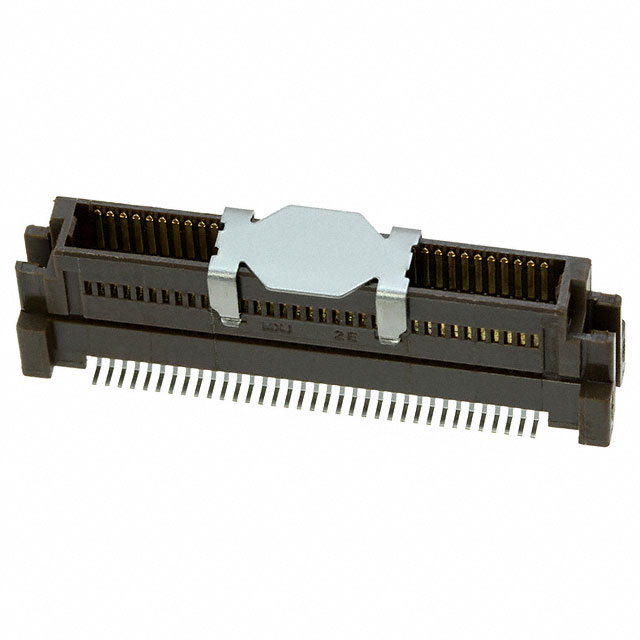

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0536270774 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0536270774 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0536270774 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 70POS VERT DL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.317 | $1.265 | $1.16 | $1.107 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0536270774 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG 70POS VERT DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29103 pcs | Data sheet | 53627 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 53627 |
| Pitch | 0.025" (0.64mm) | Packaging | Cut Tape (CT) |
| Other Names | WM8889CT | Number of Rows | 2 |
| Number of Positions | 70 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 10mm, 16mm |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.354" (9.00mm) | Features | Board Guide, Solder Retention |
| Detailed Description | 70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
