0536490374

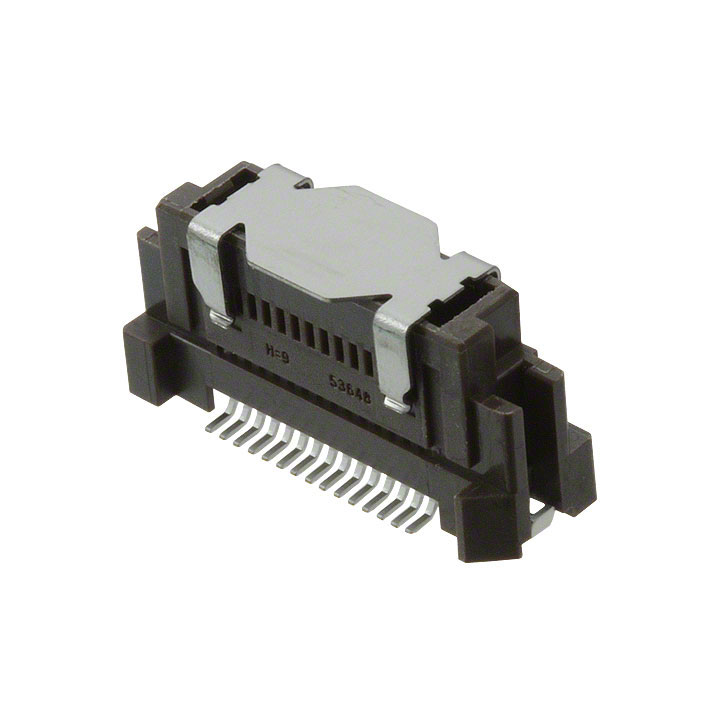

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0536490374 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0536490374 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0536490374 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG BTB 30POS DL VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 190 pcs | 380 pcs | 570 pcs | ||
|---|---|---|---|---|---|
| $1.162 | $1.017 | $0.988 | |||
| 950 pcs | 1330 pcs | 1900 pcs | |||
| $0.901 | $0.843 | $0.814 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0536490374 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN PLUG BTB 30POS DL VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48463 pcs | Data sheet | 52901, 53649 Series DrawingProd Spec |
| Category | Connectors, Interconnects | Series | SlimStack 53649 |
| Pitch | 0.025" (0.64mm) | Packaging | Tape & Reel (TR) |
| Other Names | 053649-0374 53649-0374 53649-0374-TR190 536490374 WM8882TR |
Number of Rows | 2 |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 14mm, 15mm |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.315" (8.00mm) | Features | Board Guide, Solder Retention |
| Detailed Description | 30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Plug, Outer Shroud Contacts |
