0008560120

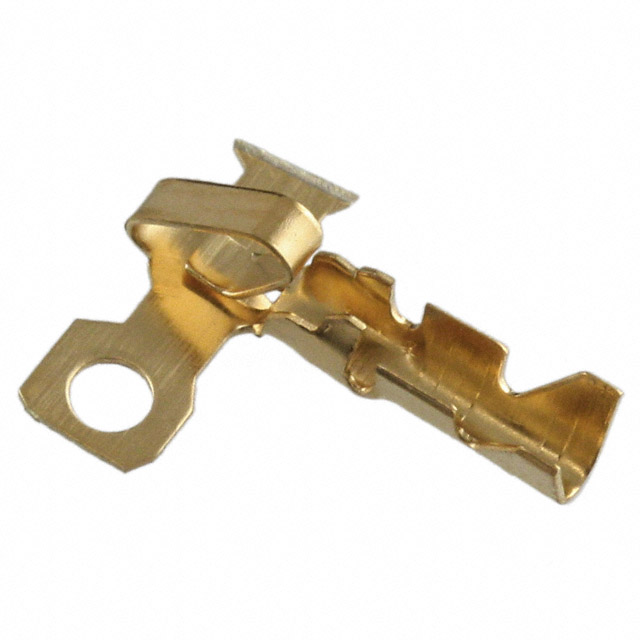

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0008560120 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0008560120 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0008560120 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM RCPT CRIMP 22-30AWG GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 7000 pcs | 14000 pcs | 35000 pcs | ||
|---|---|---|---|---|---|
| $0.102 | $0.093 | $0.091 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0008560120 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM RCPT CRIMP 22-30AWG GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 210555 pcs | Data sheet | 2.50, 2.54mm Centerline Pitch Spec0008560120 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-30 AWG |
| Type | - | Series | KK 4809 |
| Pin or Socket | Non-Gendered | Packaging | Tape & Reel (TR) |
| Other Names | 0008-56-0120 08-56-0120 08560120 4809-(550) 8560120 WM3725TR |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Non-Gendered Contact Gold 22-30 AWG Crimp | Contact Termination | Crimp |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
