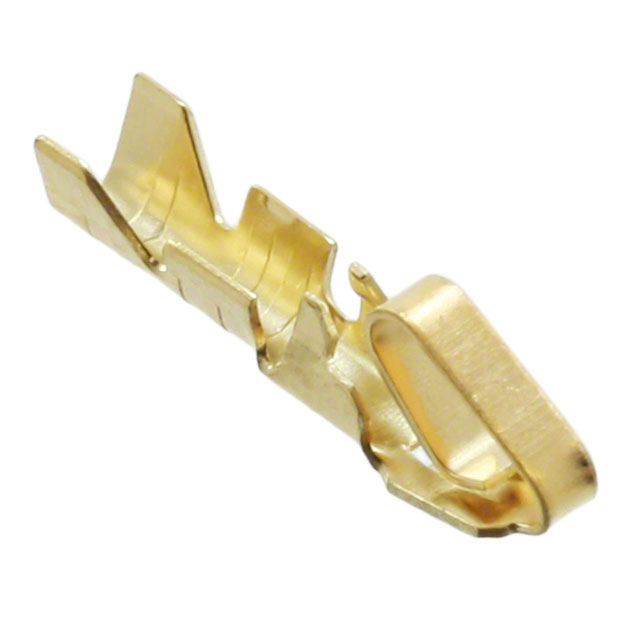

0008560115
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0008560115 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0008560115 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0008560115 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERM FEMALE 22-30AWG GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.257 | $0.242 | $0.218 | $0.194 | $0.186 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.17 | $0.162 | $0.133 | $0.121 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0008560115 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERM FEMALE 22-30AWG GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156106 pcs | Data sheet | 2.50, 2.54mm Centerline Pitch Spec0008560115 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-30 AWG |
| Type | - | Series | KK 4809 |
| Pin or Socket | Non-Gendered | Packaging | Bulk |
| Other Names | 000856-0115 00856-0115 08-56-0115 4809-(550)L 856-0115 8560115 WM7181 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Non-Gendered Contact Gold 22-30 AWG Crimp | Contact Termination | Crimp |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
