0008560109

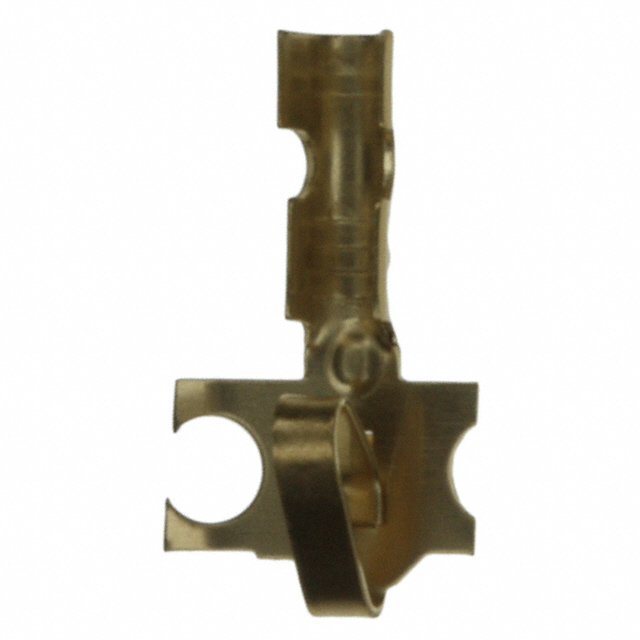

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0008560109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0008560109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0008560109 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERM FEMALE 22-30AWG GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | 20000 pcs | 30000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.05 | $0.049 | $0.048 | $0.047 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0008560109 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERM FEMALE 22-30AWG GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 476788 pcs | Data sheet | 2.50, 2.54mm Centerline Pitch Spec08-5y-0yyy |
| Category | Connectors, Interconnects | Wire Gauge | 22-30 AWG |
| Type | - | Series | KK 2759 |
| Pin or Socket | Non-Gendered | Packaging | Tape & Reel (TR) |
| Other Names | 0008-56-0109 0008-56-0109-C 0008560109-C 08-56-0109 08-56-0109-C 08560109 08560109-C 2759-(550)B 8560109 WM1129TR |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Non-Gendered Contact Gold 22-30 AWG Crimp | Contact Termination | Crimp |
| Contact Finish Thickness | 15.0µin (0.38µm) | Contact Finish | Gold |
