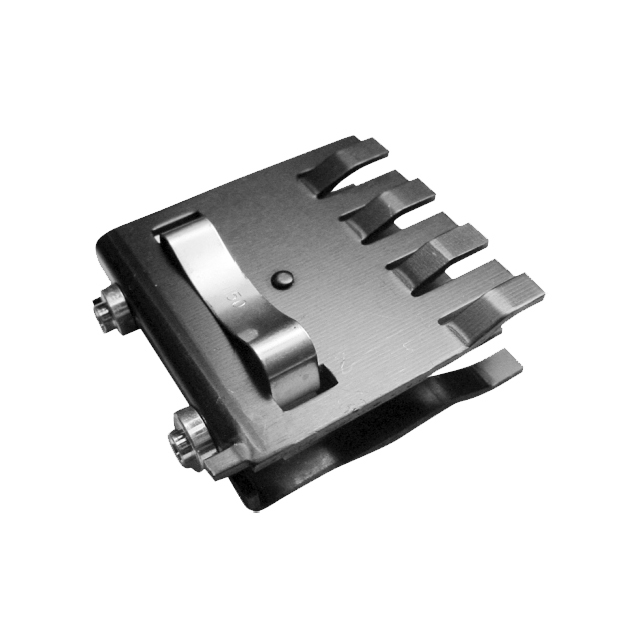

ATS-PCB1053
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1053 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1053 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1053 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-220 HIGH RISE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.498 | $0.488 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1053 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220 HIGH RISE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79936 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 0.697" (17.70mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 6.30°C/W |
| Thermal Resistance @ Forced Air Flow | 2.70°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220 | Other Names | ATS2095 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 1.760" (44.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.772" (45.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum Board Level, Vertical | Attachment Method | Clip and Board Mounts |
