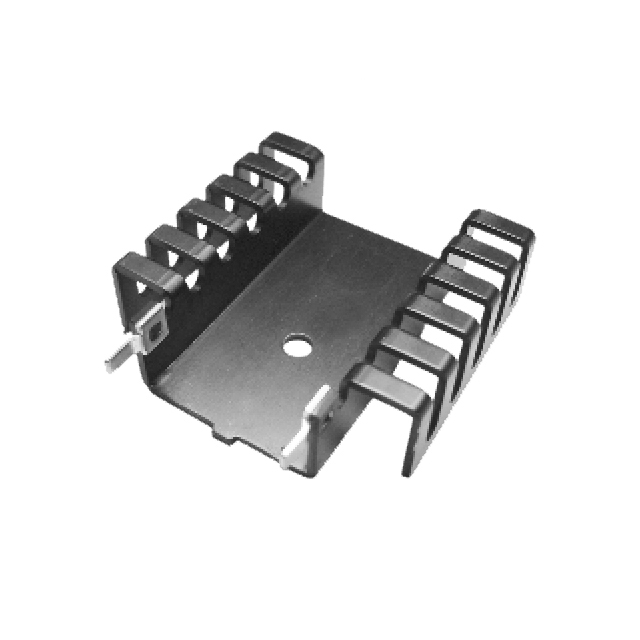

ATS-PCB1045
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1045 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1045 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1045 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-220/TO-218/TO-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.212 | $0.204 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1045 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220/TO-218/TO-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96079 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 1.700" (43.18mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 8.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.30°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-218, TO-220, TO-247 | Other Names | ATS2087 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 1.640" (41.66mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218, TO-220, TO-247 Aluminum Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
