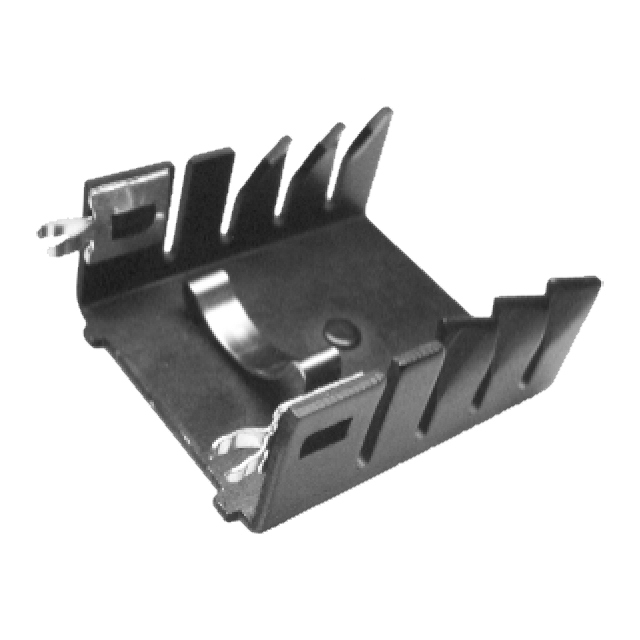

ATS-PCB1038
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1038 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1038 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1038 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-220 W/TAB BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 5000 pcs | |||
|---|---|---|---|---|---|
| $0.22 | $0.212 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1038 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220 W/TAB BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95841 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.40°C/W |
| Thermal Resistance @ Forced Air Flow | 7.00°C/W @ 200 LFM | Shape | Rectangular, Angled Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220 | Other Names | ATS2080 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 1.181" (30.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
