ACAJ-109-T

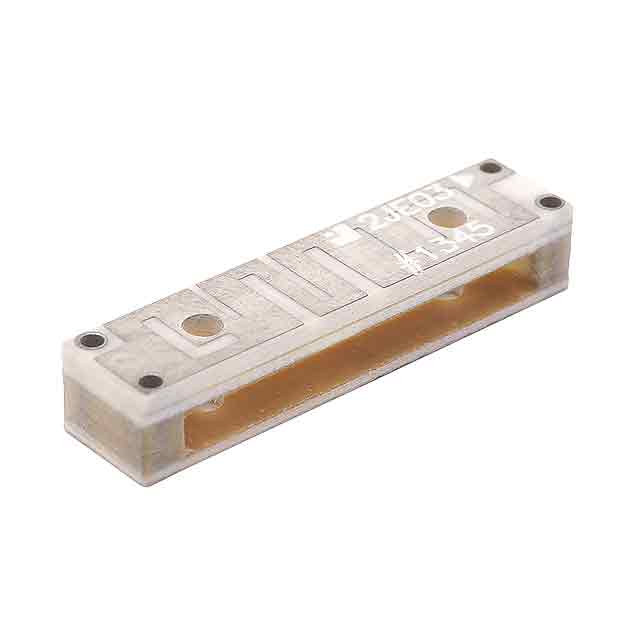

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACAJ-109-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACAJ-109-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACAJ-109-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 850MHZ/900MHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $3.242 | $2.919 | $2.659 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.40 | $2.205 | $2.011 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACAJ-109-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18363 pcs | Data sheet | ACAJ-109-T Datasheet |
| Category | RF/IF and RFID | VSWR | 3.5, 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Cut Tape (CT) |
| Other Names | 535-13312-1 | Number of Bands | 5 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.173" (4.40mm) |
| Gain | 6.4dBi | Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Frequency Group | Wide Band | Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Features | - | Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM, UMTS Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 6.4dBi Solder Surface Mount |
| Applications | GSM, UMTS | Antenna Type | Chip |
