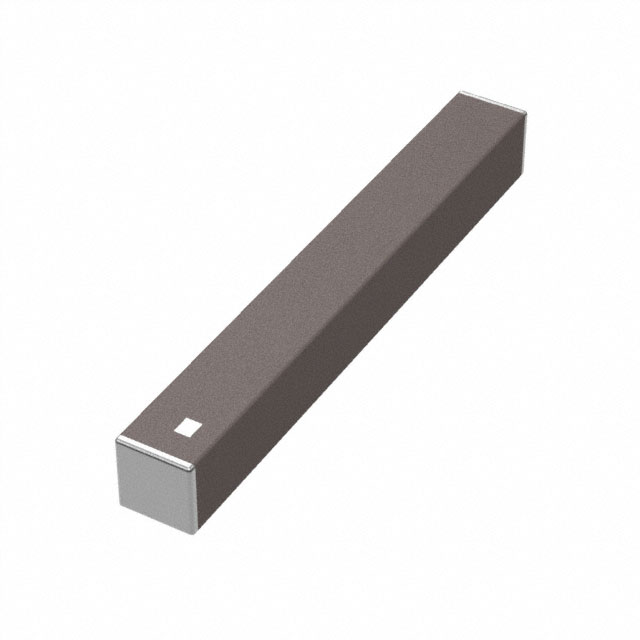

ACAG0801-2450-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACAG0801-2450-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACAG0801-2450-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACAG0801-2450-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 2.45GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 37500 pcs |
|---|---|---|---|---|---|
| $0.096 | $0.087 | $0.081 | $0.078 | $0.075 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ACAG0801-2450-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 2.45GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 291781 pcs | Data sheet | ACAG0801-2450-T Datasheet |
| Category | RF/IF and RFID | VSWR | 2 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Tape & Reel (TR) |
| Other Names | 535-14489-2 | Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.039" (1.00mm) |
| Gain | 7.29dBi | Frequency Range | 2.4GHz ~ 2.5GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.45GHz |
| Features | - | Detailed Description | 2.45GHz Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 7.29dBi Solder Surface Mount |
| Applications | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ | Antenna Type | Chip |
