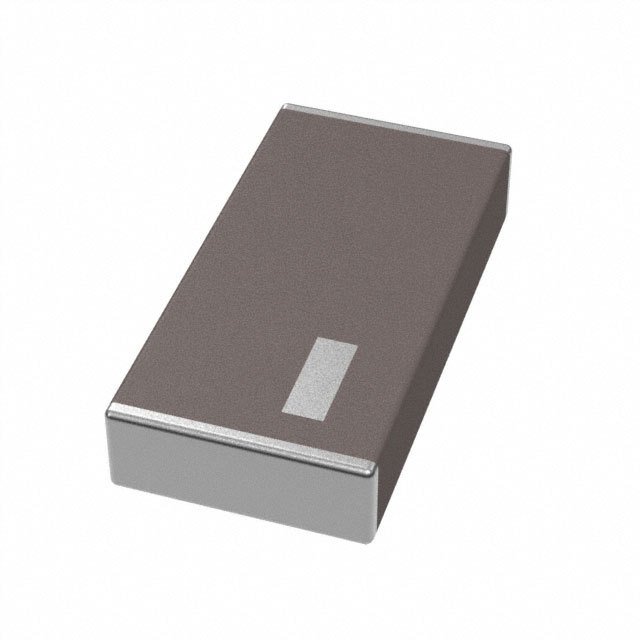

ACAG0301-5500-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACAG0301-5500-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACAG0301-5500-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACAG0301-5500-T |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RF ANT 5.5GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.106 | $0.098 | $0.095 | $0.091 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACAG0301-5500-T | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RF ANT 5.5GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214709 pcs | Data sheet | ACAG0301-5500-T Datasheet |
| Category | RF/IF and RFID | VSWR | 2 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Tape & Reel (TR) |
| Other Names | 535-14488-2 | Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.047" (1.20mm) |
| Gain | 4.5dBi | Frequency Range | 5.15GHz ~ 5.85GHz |
| Frequency Group | SHF (f > 4 GHz) | Frequency (Center/Band) | 5.5GHz |
| Features | - | Detailed Description | 5.5GHz ISM, Wi-Fi, WLAN Chip RF Antenna 5.15GHz ~ 5.85GHz 4.5dBi Solder Surface Mount |
| Applications | ISM, Wi-Fi, WLAN | Antenna Type | Chip |
