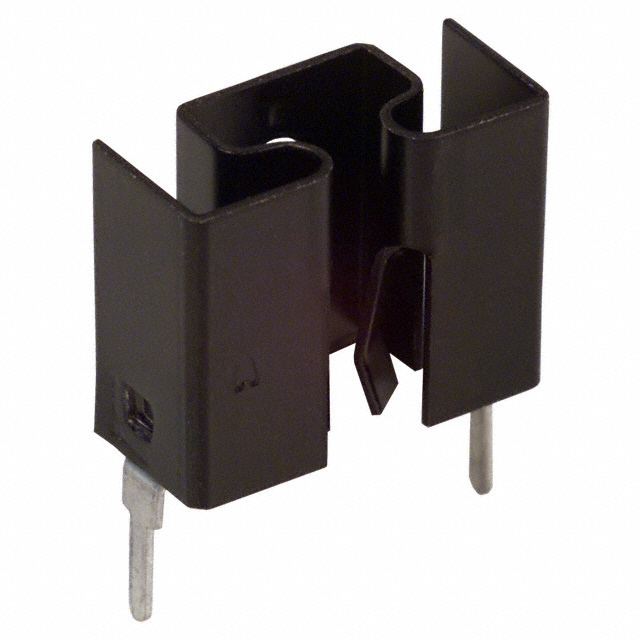

574602B03700G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 574602B03700G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 574602B03700G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 574602B03700G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO220 VER MNT W/TAB.69" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.245 | $0.232 | $0.221 | $0.215 | $0.212 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.197 | $0.186 | $0.168 | $0.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 574602B03700G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO220 VER MNT W/TAB.69" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 136724 pcs | Data sheet | Standard Heatsinks Catalog57(4,8)x02B Series |
| Category | Fans, Thermal Management | Width | 0.860" (21.84mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 21.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.0W @ 60°C |
| Package Cooled | TO-220 | Other Names | 042192 HS359 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.690" (17.53mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.395" (10.03mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 3.0W @ 60°C Board Level, Vertical | Attachment Method | Clip and PC Pin |
