5746613-3

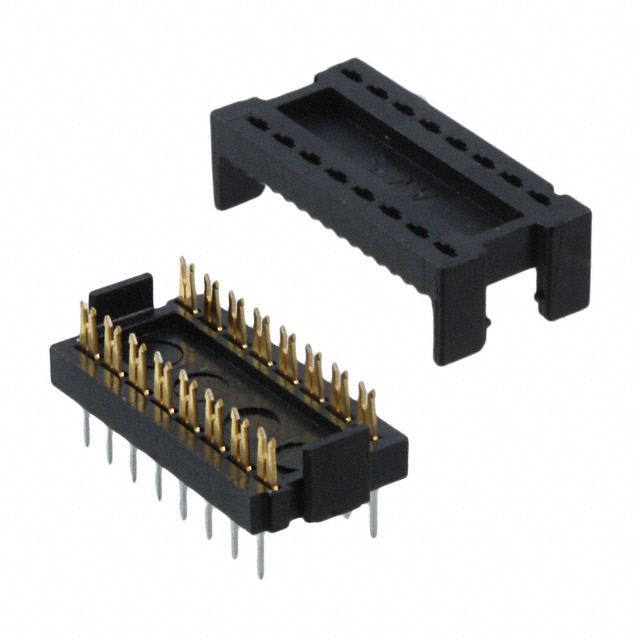

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5746613-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5746613-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5746613-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 16POS DIP W/COVER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 156 pcs |
|---|---|---|---|---|---|
| $1.425 | $1.367 | $1.253 | $1.196 | $1.139 | |
| 312 pcs | 624 pcs | 1092 pcs | 2652 pcs | ||
| $0.997 | $0.968 | $0.826 | $0.769 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5746613-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 16POS DIP W/COVER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46075 pcs | Data sheet | 5746613 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 28 AWG, Stranded; 26-30 AWG, Solid |
| Series | AMP-Latch | Row Spacing | 0.300" (7.62mm) |
| Packaging | Tray | Other Names | 5746613-3-ND 57466133 A105086 |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Feed Through |
| Detailed Description | 16 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG, Stranded; 26-30 AWG, Solid Through Hole | Contact Finish Thickness | 5.00µin (0.127µm) |
| Contact Finish | Gold | Connector Type | Ribbon Cable, DIP Header |
| Color | Black | Cable Termination | IDC |
| Cable Pitch | 0.050" (1.27mm) | Board-Side Pitch | 0.100" (2.54mm) |
