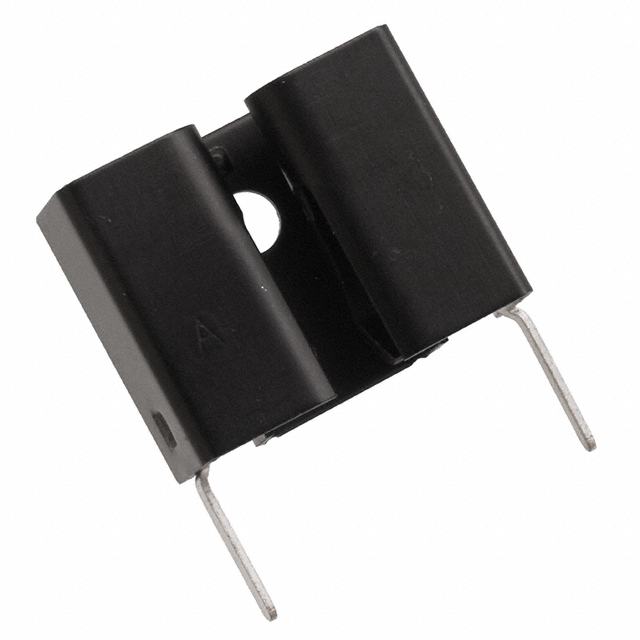

574602B03300G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 574602B03300G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 574602B03300G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 574602B03300G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 CLIP-ON/TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.17 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 574602B03300G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 CLIP-ON/TAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129162 pcs | Data sheet | Standard Heatsinks Catalog57(4,8)x02B Series |
| Category | Fans, Thermal Management | Width | 0.860" (21.84mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 21.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 600 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.0W @ 60°C |
| Package Cooled | TO-220 | Other Names | 042350 |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 7 Weeks | Length | 0.690" (17.53mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.395" (10.03mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 3.0W @ 60°C Board Level, Vertical |
| Attachment Method | Clip and PC Pin |
