Home > Products > Inductors, Coils, Chokes > Fixed Inductors > LMXN2216M2R2BTAS

LMXN2216M2R2BTAS

LMXN2216M2R2BTAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LMXN2216M2R2BTAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LMXN2216M2R2BTAS
Manufacturer	AVX Corporation
Description	FIXED IND 2.2UH 6 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 50406 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$0.633

Product parameter
Data sheet

Product parameter

Part Number	LMXN2216M2R2BTAS	Manufacturer	AVX Corporation
Description	FIXED IND 2.2UH 6 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50406 pcs	Data sheet	LMXN Series, B Datasheet SMD Power Inductors Catalog
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.880" L x 0.640" W (22.35mm x 16.26mm)	Shielding	Unshielded
Series	LMXN	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	478-7108-2
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	2.2µH
Height - Seated (Max)	0.315" (8.00mm)	Frequency - Self Resonant	-
Detailed Description	2.2µH Unshielded Wirewound Inductor 6 mOhm Max Nonstandard	DC Resistance (DCR)	6 mOhm Max
Current - Saturation	20A

Related products
Related news

Related products

LMXS1010N100LTAS Image

Part#:~~LMXS1010N100LTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 10UH 3.18A 59 MOHM SMD~~
In Stock:~~70055~~

~~$0.54/pcs~~RFQ

LMXN1310M680CTAS Image

Part#:~~LMXN1310M680CTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 68UH 220 MOHM SMD~~
In Stock:~~95460~~

~~$0.399/pcs~~RFQ

LMXN0906MR47BTAS Image

Part#:~~LMXN0906MR47BTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 470NH SMD~~
In Stock:~~82955~~

~~$0.285/pcs~~RFQ

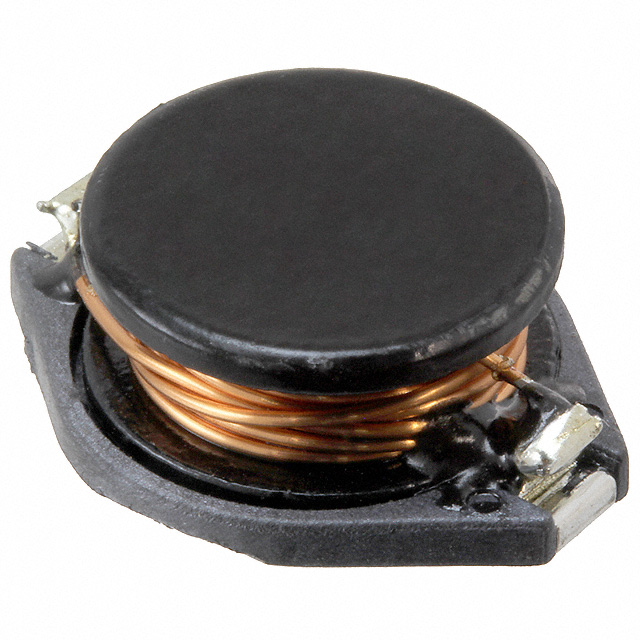

LMXN2216M470BTAS Image
