Home > Products > Inductors, Coils, Chokes > Fixed Inductors > LMXN1915M680CTAS

LMXN1915M680CTAS

LMXN1915M680CTAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LMXN1915M680CTAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LMXN1915M680CTAS
Manufacturer	AVX Corporation
Description	FIXED IND 68UH 130 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 80763 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$0.37

Product parameter
Data sheet

Product parameter

Part Number	LMXN1915M680CTAS	Manufacturer	AVX Corporation
Description	FIXED IND 68UH 130 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80763 pcs	Data sheet	SMD Power Inductors Catalog LMXN Series, C Datasheet
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.730" L x 0.600" W (18.54mm x 15.24mm)	Shielding	Unshielded
Series	LMXN	Ratings	-
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	100kHz
Inductance	68µH	Height - Seated (Max)	0.280" (7.11mm)
Frequency - Self Resonant	-	Detailed Description	68µH Unshielded Wirewound Inductor 130 mOhm Max Nonstandard
DC Resistance (DCR)	130 mOhm Max	Current - Saturation	3.5A

Related products
Related news

Related products

LMXS101AN150LTAS Image

Part#:~~LMXS101AN150LTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 15UH 3.6A 50 MOHM SMD~~
In Stock:~~79947~~

~~$0.3/pcs~~RFQ

LMXN0605M330DTAS Image

Part#:~~LMXN0605M330DTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 33UH 880MA 230 MOHM~~
In Stock:~~132394~~

~~$0.183/pcs~~RFQ

LMXN1915M102CTAS Image

Part#:~~LMXN1915M102CTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 1MH 1A 1.8 OHM SMD~~
In Stock:~~72903~~

~~$0.515/pcs~~RFQ

LMXS0704M100DTAS Image

Part#:~~LMXS0704M100DTAS~~
Manufacturers:~~AVX Corporation~~
Description:~~FIXED IND 10UH 1A 75 MOHM SMD~~
In Stock:~~63942~~

~~$0.354/pcs~~RFQ

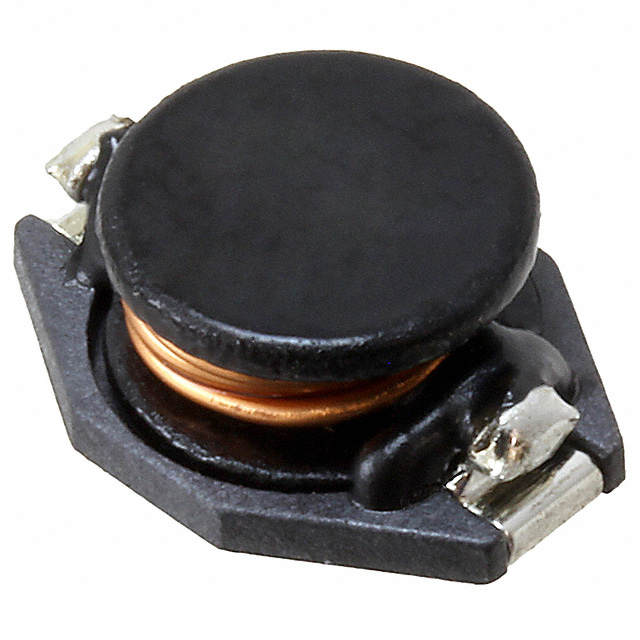

LMXN0906M220BTAS Image
