Home > Products > Inductors, Coils, Chokes > Fixed Inductors > LMXN1915M100CTAS

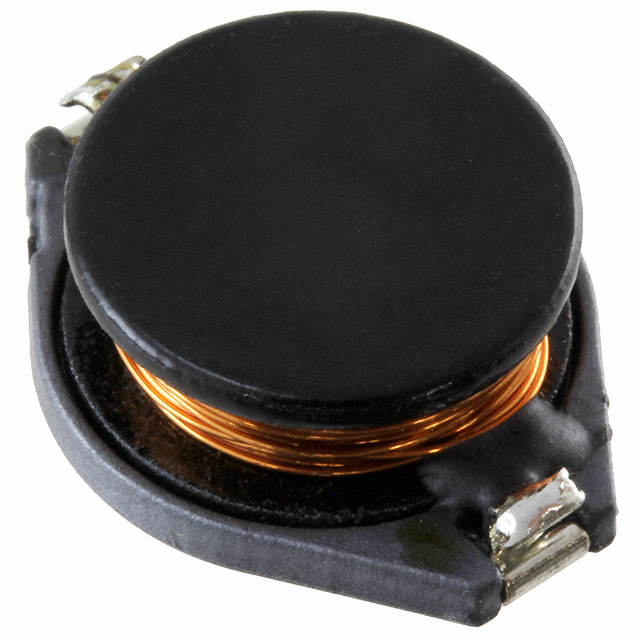

LMXN1915M100CTAS

LMXN1915M100CTAS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LMXN1915M100CTAS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LMXN1915M100CTAS
Manufacturer	AVX Corporation
Description	FIXED IND 10UH 10A 31 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 49475 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
Reference Price (In US Dollars)	$1.291	$1.183	$0.774

Product parameter
Data sheet

Product parameter

Part Number	LMXN1915M100CTAS	Manufacturer	AVX Corporation
Description	FIXED IND 10UH 10A 31 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49475 pcs	Data sheet	SMD Power Inductors Catalog LMXN Series, C Datasheet
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.730" L x 0.600" W (18.54mm x 15.24mm)	Shielding	Unshielded
Series	LMXN	Ratings	-
Q @ Freq	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	478-7106-6
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	10µH
Height - Seated (Max)	0.280" (7.11mm)	Frequency - Self Resonant	-
Detailed Description	10µH Unshielded Wirewound Inductor 31 mOhm Max Nonstandard	DC Resistance (DCR)	31 mOhm Max
Current - Saturation	10A
