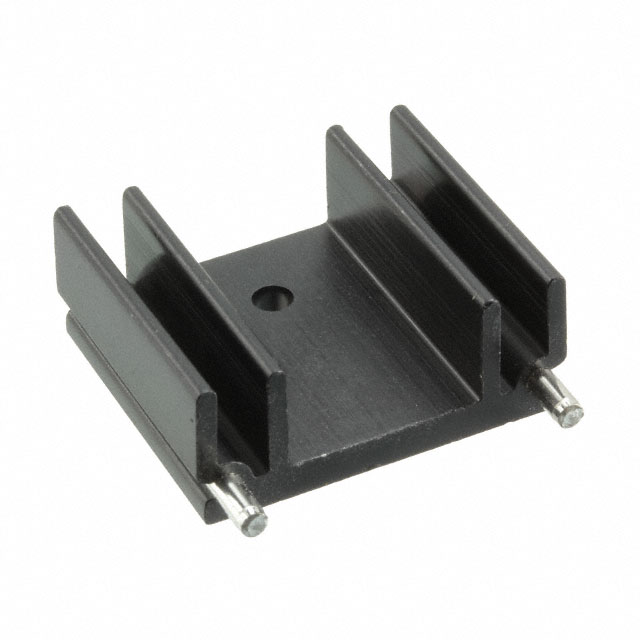

V6560W
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V6560W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V6560W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V6560W |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK ALUM ANOD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 116 pcs |
|---|---|---|---|---|---|
| $0.203 | $0.195 | $0.185 | $0.18 | $0.178 | |
| 348 pcs | 580 pcs | 1044 pcs | 5104 pcs | ||
| $0.165 | $0.156 | $0.141 | $0.136 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V6560W | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK ALUM ANOD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152159 pcs | Data sheet | V6560x Drawing |
| Category | Fans, Thermal Management | Width | 1.181" (30.00mm) |
| Type | Board Level | Thermal Resistance @ Natural | 10.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220 | Other Names | AE10901 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.984" (25.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.472" (12.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum Board Level | Attachment Method | Bolt On and PC Pin |
