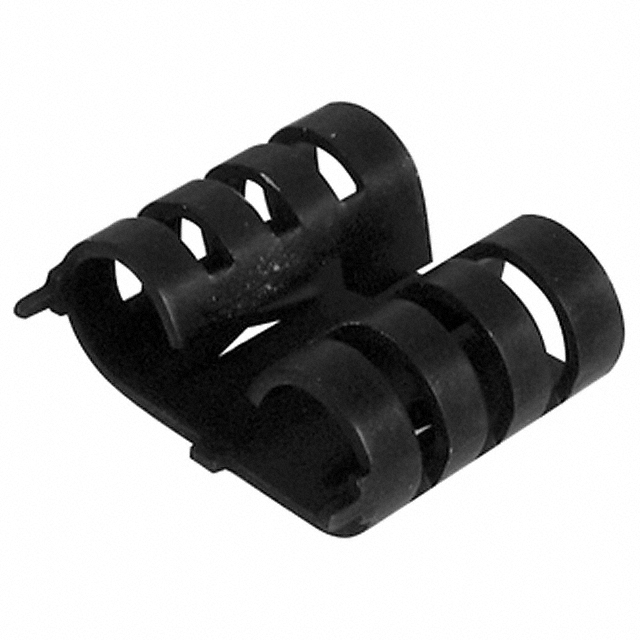

V6534E1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V6534E1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V6534E1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V6534E1 |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK ALUM ANOD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | V6534E1 | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK ALUM ANOD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5433 pcs | Data sheet | V6534A/B/E1 Drawing |
| Category | Fans, Thermal Management | Width | 0.984" (25.00mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 35.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220 | Other Names | AE10894 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Aluminum | Length | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.394" (10.00mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum Board Level, Vertical |
| Attachment Method | PC Pin |
