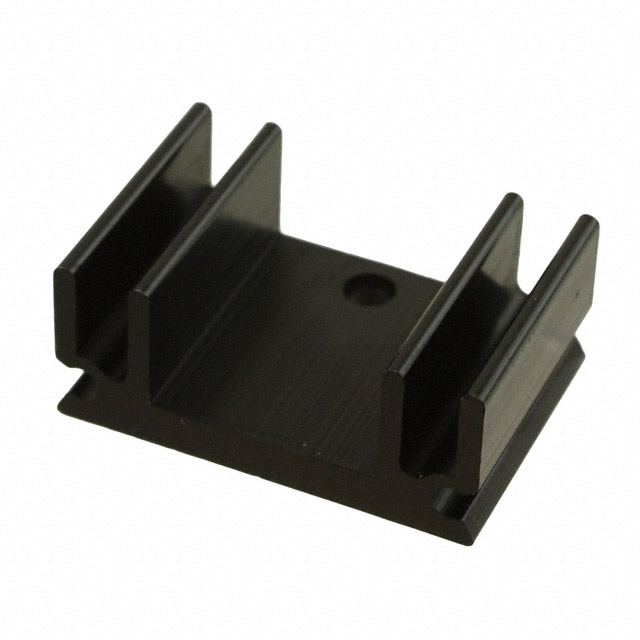

V6560N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V6560N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V6560N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V6560N |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK ALUM ANOD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.275 | $0.263 | $0.25 | $0.244 | $0.24 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.224 | $0.211 | $0.191 | $0.184 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V6560N | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK ALUM ANOD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121646 pcs | Data sheet | V6560x Drawing |
| Category | Fans, Thermal Management | Width | 1.142" (29.00mm) |
| Type | Board Level | Thermal Resistance @ Natural | 15.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220 | Other Names | AE10891 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.787" (20.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.472" (12.00mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum Board Level | Attachment Method | Bolt On |
