AR 48 HZL-TT

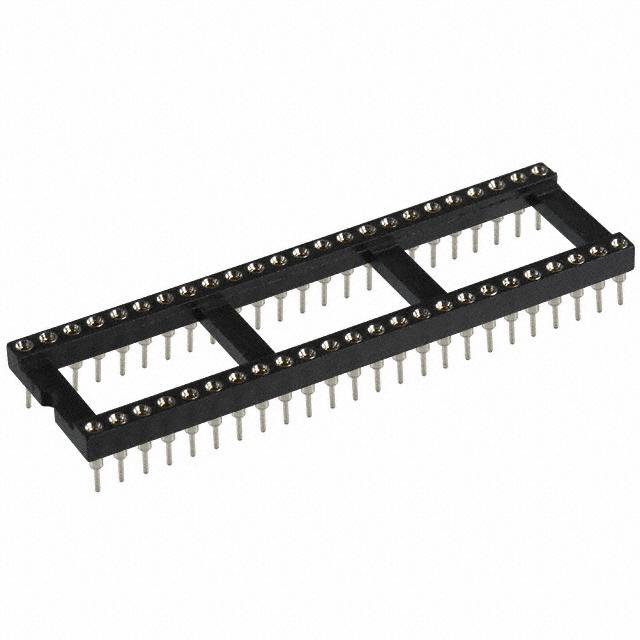

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR 48 HZL-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR 48 HZL-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AR 48 HZL-TT |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 48POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 27 pcs | 54 pcs | 108 pcs |
|---|---|---|---|---|---|
| $0.914 | $0.831 | $0.78 | $0.746 | $0.712 | |
| 252 pcs | 504 pcs | 1008 pcs | 2502 pcs | ||
| $0.645 | $0.594 | $0.509 | $0.475 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AR 48 HZL-TT | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 48POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66302 pcs | Data sheet | AR-xxx-x/x Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | AE10019 AR-48-HZL-TT AR48-HZL-TT-R AR48HZLTTR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 48 (2 x 24) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
