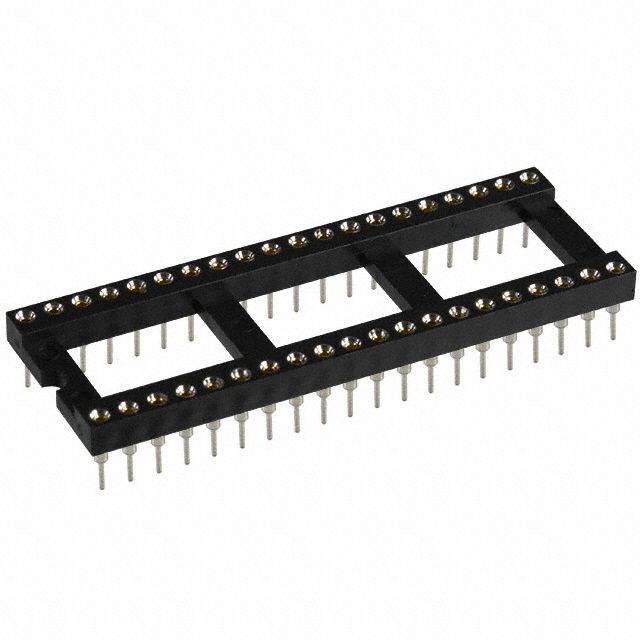

AR 40 HZL/01-TT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR 40 HZL/01-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR 40 HZL/01-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AR 40 HZL/01-TT |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 40POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1573 pcs | ||||
|---|---|---|---|---|---|
| $0.795 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AR 40 HZL/01-TT | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 40POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40523 pcs | Data sheet | AR-xxx-x/x Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | AE10031 AR-40-HZL/01-TT AR40-HZL/01-TT-R AR40HZL01TTR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 40 (2 x 20) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
