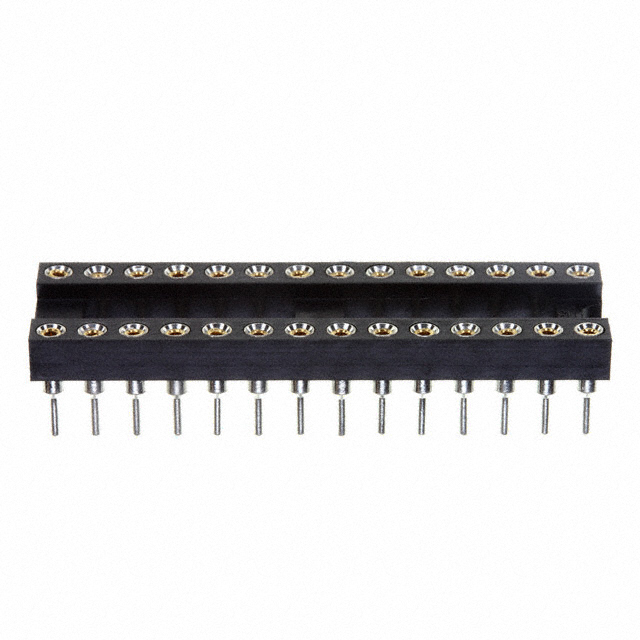

AR 28 HZL/01/7-TT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR 28 HZL/01/7-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR 28 HZL/01/7-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AR 28 HZL/01/7-TT |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 28POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | 64 pcs | 112 pcs |
|---|---|---|---|---|---|
| $0.905 | $0.868 | $0.796 | $0.76 | $0.724 | |
| 256 pcs | 512 pcs | 1008 pcs | 2512 pcs | ||
| $0.633 | $0.615 | $0.525 | $0.488 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AR 28 HZL/01/7-TT | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 28POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62298 pcs | Data sheet | AR-xxx-x/x Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | AE10029 AR-28-HZL/01/7-TT AR28-HZL/7/01-TT-R AR28HZL701TTR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
