Home > Products > Inductors, Coils, Chokes > Fixed Inductors > HCTR-504

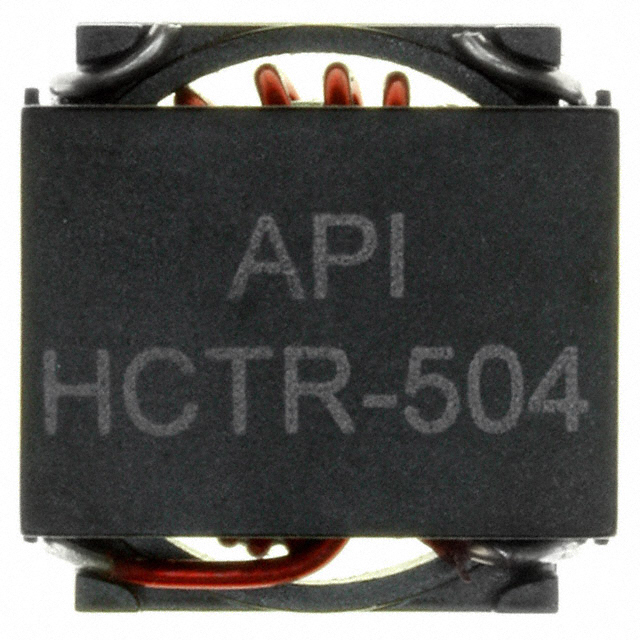

HCTR-504

HCTR-504
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCTR-504 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number HCTR-504
Manufacturer API Delevan
Description FIXED IND 17UH 5.37A 17 MOHM SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 38632 pcs
Reference Price
(In US Dollars)		1000 pcs
$0.925

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.925

Product parameter

Part Number HCTR-504 Manufacturer API Delevan
Description FIXED IND 17UH 5.37A 17 MOHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 38632 pcs Data sheet HCT(R) Series
Category Inductors, Coils, Chokes Type Toroidal
Tolerance ±25% Supplier Device Package -
Size / Dimension 0.740" L x 0.740" W (18.80mm x 18.80mm) Shielding Shielded
Series HCTR Ratings -
Q @ Freq 22 @ 100kHz Packaging Bulk
Package / Case Nonstandard Other Names DN4802
HCTR-504 BULK 50
Operating Temperature -30°C ~ 130°C Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material - Core Iron Powder
Manufacturer Standard Lead Time 17 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 100kHz Inductance 17µH
Height - Seated (Max) 0.400" (10.16mm) Frequency - Self Resonant 29MHz
Detailed Description 17µH Shielded Toroidal Inductor 5.37A 17 mOhm Max Nonstandard DC Resistance (DCR) 17 mOhm Max
