HCTR-502

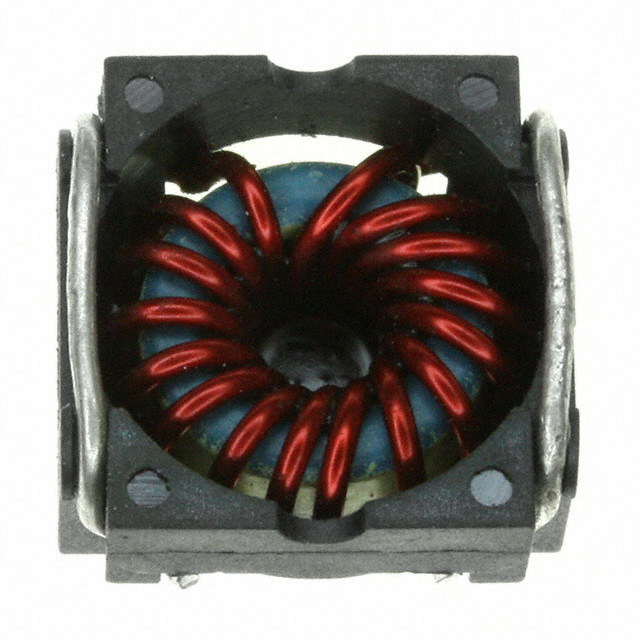

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCTR-502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCTR-502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCTR-502 |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 8.4UH 10.8A 8.3 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.91 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCTR-502 | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 8.4UH 10.8A 8.3 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40881 pcs | Data sheet | HCT(R) Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.740" L x 0.740" W (18.80mm x 18.80mm) | Shielding | Shielded |
| Series | HCTR | Ratings | - |
| Q @ Freq | 23 @ 100kHz | Packaging | Bulk |
| Package / Case | Nonstandard | Other Names | DN4800 HCTR-502 BULK 50 |
| Operating Temperature | -30°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 8.4µH |
| Height - Seated (Max) | 0.400" (10.16mm) | Frequency - Self Resonant | 45MHz |
| Detailed Description | 8.4µH Shielded Toroidal Inductor 10.8A 8.3 mOhm Max Nonstandard | DC Resistance (DCR) | 8.3 mOhm Max |
| Current Rating | 10.8A | Current - Saturation | - |
