NTLJS4159NT1G

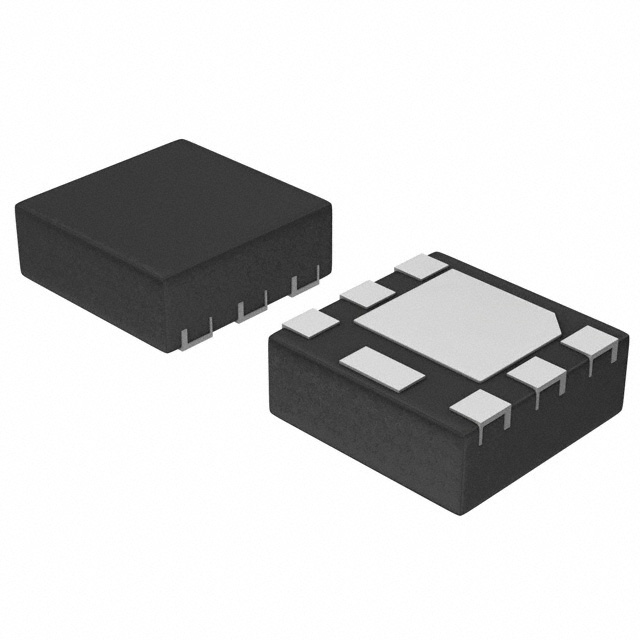

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTLJS4159NT1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTLJS4159NT1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTLJS4159NT1G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 3.6A 6-WFDN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NTLJS4159NT1G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 3.6A 6-WFDN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5194 pcs | Data sheet | NTLJS4159N |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-WDFN (2x2) | Series | - |
| Rds On (Max) @ Id, Vgs | 35 mOhm @ 2A, 4.5V | Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-WDFN Exposed Pad |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1045pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 13nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2) | Current - Continuous Drain (Id) @ 25°C | 3.6A (Ta) |
