NTLLD4901NFTWG

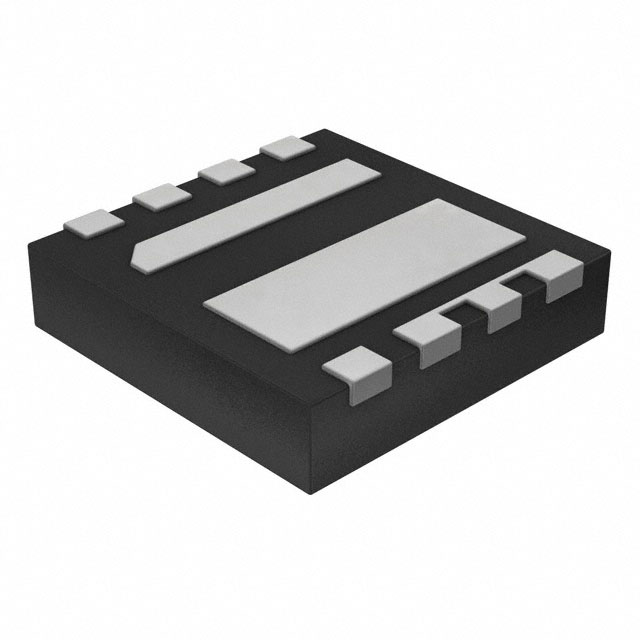

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NTLLD4901NFTWG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NTLLD4901NFTWG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NTLLD4901NFTWG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 30V 5.5A/6.3A WDFN8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.528 | $0.469 | $0.37 | $0.287 | $0.227 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NTLLD4901NFTWG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V 5.5A/6.3A WDFN8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104892 pcs | Data sheet | NTLLD4901NF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-WDFN (3x3) | Series | - |
| Rds On (Max) @ Id, Vgs | 17.4 mOhm @ 9A, 10V | Power - Max | 800mW, 810mW |
| Packaging | Original-Reel® | Package / Case | 8-PowerWDFN |
| Other Names | NTLLD4901NFTWGOSDKR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 605pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 5.5A, 6.3A 800mW, 810mW Surface Mount 8-WDFN (3x3) |
| Current - Continuous Drain (Id) @ 25°C | 5.5A, 6.3A |
