Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > NGTG20N60L2TF1G

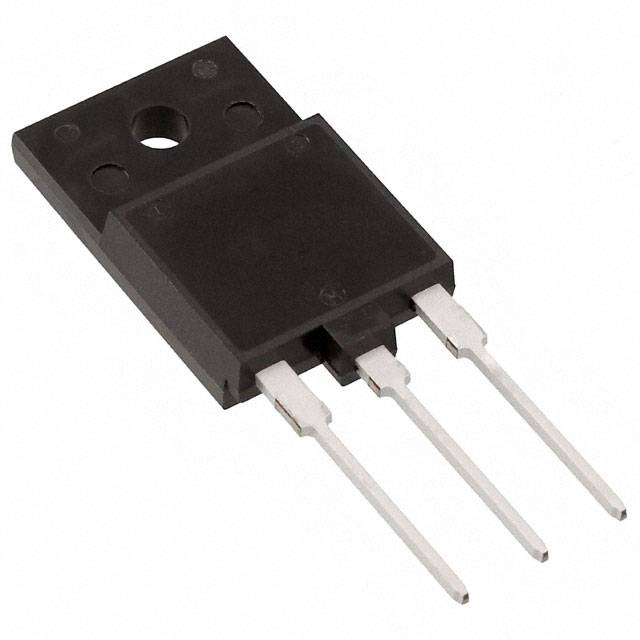

NGTG20N60L2TF1G

NGTG20N60L2TF1G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NGTG20N60L2TF1G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number NGTG20N60L2TF1G
Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 40A 64W TO-3PF
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 64770 pcs
Reference Price
(In US Dollars)		1 pcs30 pcs120 pcs510 pcs1020 pcs
$1.045$0.884$0.753$0.619$0.513

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.045

Product parameter

Part Number NGTG20N60L2TF1G Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 40A 64W TO-3PF Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 64770 pcs Data sheet NGTG20N60L2TF1G
Category Discrete Semiconductor Products Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge, Ic 1.65V @ 15V, 20A Test Condition 300V, 20A, 30 Ohm, 15V
Td (on/off) @ 25°C 60ns/193ns Switching Energy -
Series - Power - Max 64W
Packaging Tube Package / Case TO-3P-3 Full Pack
Other Names NGTG20N60L2TF1GOS Operating Temperature 175°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 4 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type Standard IGBT Type -
Gate Charge 84nC Detailed Description IGBT 600V 40A 64W Through Hole
Current - Collector Pulsed (Icm) 105A Current - Collector (Ic) (Max) 40A
