Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > NGTG12N60TF1G

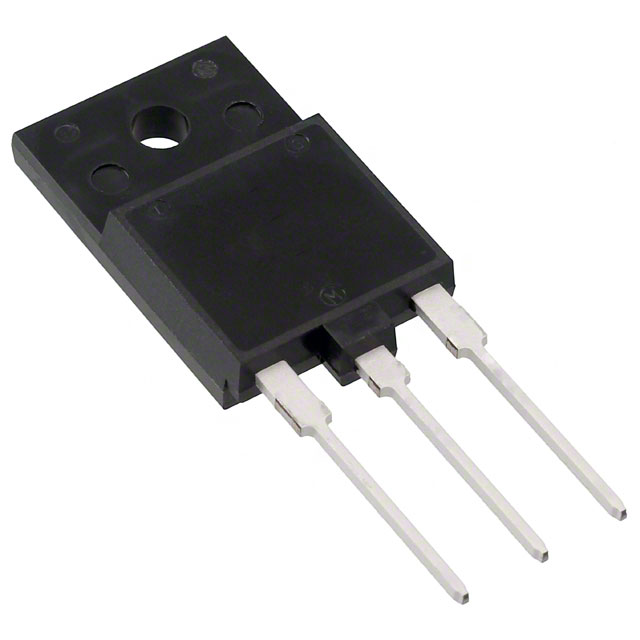

NGTG12N60TF1G

NGTG12N60TF1G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NGTG12N60TF1G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number NGTG12N60TF1G
Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 24A 54W TO-3PF
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 84990 pcs
Reference Price
(In US Dollars)		1 pcs30 pcs120 pcs510 pcs1020 pcs
$0.781$0.662$0.564$0.463$0.384

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.781

Product parameter

Part Number NGTG12N60TF1G Manufacturer AMI Semiconductor / ON Semiconductor
Description IGBT 600V 24A 54W TO-3PF Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 84990 pcs Data sheet NGTG12N60TF1G
Category Discrete Semiconductor Products Voltage - Collector Emitter Breakdown (Max) 600V
Vce(on) (Max) @ Vge, Ic 1.6V @ 15V, 12A Test Condition 300V, 15A, 30 Ohm, 15V
Td (on/off) @ 25°C 55ns/200ns Switching Energy -
Series - Power - Max 54W
Packaging Tube Package / Case TO-3P-3 Full Pack
Other Names NGTG12N60TF1GOS Operating Temperature 150°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 6 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type Standard IGBT Type -
Gate Charge 84nC Detailed Description IGBT 600V 24A 54W Through Hole
Current - Collector Pulsed (Icm) 88A Current - Collector (Ic) (Max) 24A
